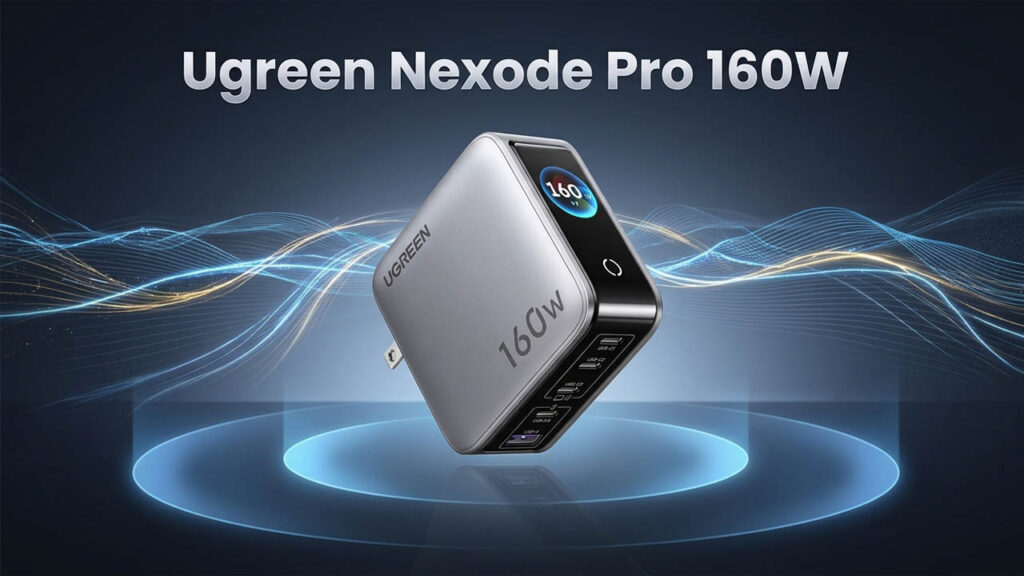

Ugreen Nexode Pro 160W Review: The Ultimate 4-Port GaN Desktop & Travel Hub

As creators, professionals, and digital nomads expand their mobile toolkits, managing power requirements across multiple devices has become a central challenge. Charging a high-performance laptop, a tablet, a smartphone, and smaller accessories often requires carrying a collection of heavy power bricks.

The Ugreen Nexode Pro 160W GaN Fast Charger aims to solve this problem by consolidating maximum power delivery into a single compact unit. Built with advanced Gallium Nitride (GaN) technology, this flagship adapter provides 160 Watts of total combined output across four dedicated charging ports. Below is an in-depth review covering its design, port configurations, fast-charging performance, safety protocols, and daily usability.

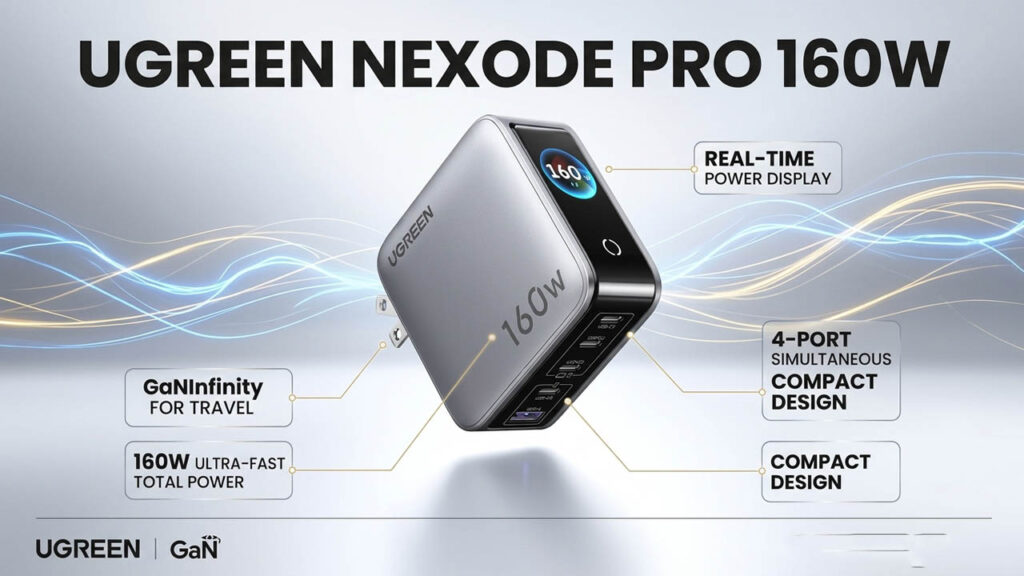

Technical Specifications at a Glance

• Total Power Output: 160W (Max combined)
• Port Configuration: 4 Ports (3× USB-C, 1× USB-A)
• Single-Port Peak Output: 140W max via USB-C1 (USB PD 3.1 EPR)
• Core Technology: AirPyra™ Tech & GaNFast™ Chips
• Fast-Charging Protocols: USB PD 3.1, PPS, QC 4.0+/3.0, SCP, FCP, AFC
• Safety Features: Thermal Guard™ dynamic temperature regulation
• Input Voltage: 100V–240V ~ 50/60Hz (Universal travel support)
• Dimensions: ~2.75 × 2.75 × 1.29 inches (70 × 70 × 33 mm)
• Weight: ~13.9 oz (395 g)

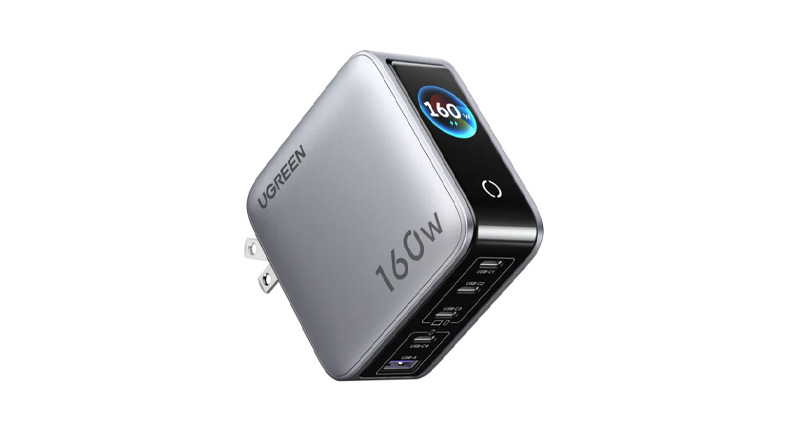

Design and Build Quality: High Density, Low Profile

Ugreen’s Nexode Pro series introduces a refined, professional design aesthetic. Moving away from standard glossy plastic housings, the Nexode Pro 160W features a dark metallic-silver body made from high-grade fire-retardant PC materials. The matte finish resists fingerprints and smudges, maintaining a clean look even after heavy travel use.

The defining architectural feature of the Nexode Pro line is Ugreen’s AirPyra™ stacking technology. By combining micro-sized transformers with stacked circuit design, Ugreen has reduced the physical footprint significantly without sacrificing cooling capability. Measuring roughly 2.75 inches on its primary sides, it fits easily into camera bags, backpack sleeves, or carry-on luggage.

The charger features a foldable US plug (or detachable/region-specific prongs depending on the market), making it travel-friendly by keeping the pins tucked away to prevent scratching other gear. A small LED indicator light provides non-intrusive status confirmation without creating annoying glare in dark rooms.

Port Selection & Power Distribution Breakdown

Equipped with 3 USB-C ports and 1 USB-A port, the Nexode Pro 160W balances legacy support with modern Power Delivery standards. Understanding how the charger allocates wattage across these four ports is essential to getting the most out of it.

1. Single-Port Performance (The 140W PD 3.1 Standard)

The top USB-C1 port supports the USB Power Delivery 3.1 Extended Power Range (EPR) standard. When used alone with a 240W/5A-rated cable, it delivers up to 140W (28V / 5A). This allows it to fast-charge high-demand laptops—like a 16-inch MacBook Pro—from 0% to 50% in roughly 28 to 30 minutes, matching OEM brick performance in a much smaller form factor.

2. Dual-Laptop Simultaneous Charging

For dual-laptop setups, connecting two machines across USB-C1 and USB-C2 provides an automatic 100W + 60W split. This setup delivers enough power to run a heavy workstation laptop alongside a 13-inch or 14-inch ultrabook without throttling either device.

3. Full 4-Device Workstation Load

When all four ports are in use, power intelligently redistributes to 65W (C1) + 45W (C2) + 20W (C3) + 22.5W (A1). This distribution comfortably supports a primary laptop, a tablet or secondary laptop, a smartphone, and a smaller accessory like a smartwatch or wireless microphone receiver.

Real-World Fast Charging Protocol Support

The Nexode Pro 160W features wide protocol compatibility, making it versatile across different hardware ecosystems:

• Apple Hardware: Fully compatible with fast-charging standards across MacBooks, iPads, and iPhones.
• Samsung Super Fast Charging 2.0: Thanks to robust PPS (Programmable Power Supply) support (up to 5A), the charger easily triggers 45W Super Fast Charging 2.0 on Samsung Galaxy Ultra devices via either C1 or C2.
• Android & Accessories: Includes support for Quick Charge 4.0+/3.0, Huawei FCP/SCP, and AFC, ensuring fast charging for legacy devices and power banks.

Thermal Management and Safety: Thermal Guard™

High-wattage GaN chargers generate heat under sustained load. To maintain safety, Ugreen integrates its proprietary Thermal Guard™ safety system into the Nexode Pro 160W.

This system monitors internal temperatures in real time, taking hundreds of readings per minute. If heat builds up during prolonged 140W+ stress tests, the internal chip adjusts power throughput dynamically to keep casing temperatures within safe operational limits.

Despite its compact size, the thermal dissipation system distributes heat evenly across the shell. Under extended heavy use, the charger becomes warm to the touch, but remains well within safe temperature thresholds without cutting power or causing device resets.

Pros and Cons

Pros

• High Power Output: 160W combined output handles demanding laptops and multi-device setups easily.
• 140W PD 3.1 Support: Delivers full fast-charging speeds for 16-inch class laptops via USB-C1.
• Four-Port Versatility: 3 USB-C and 1 USB-A port reduce the need to carry extra adapters.
• Compact AirPyra™ Design: Slim profile sits flush against wall sockets and packs away easily.
• Broad PPS Compatibility: Supports 45W fast charging for Samsung Galaxy devices and other Android flagships.

Cons

• Dedicated 140W Port Hierarchy: Only the USB-C1 port reaches the full 140W output (USB-C2 peaks at 100W).
• Weight: At roughly 395 grams, it feels solid in hand, which can cause it to sag slightly in loose or worn wall sockets.
• No Telemetry Display: Lacks a digital screen to show real-time wattage draw (uses a basic LED indicator).

Who Is the Ugreen Nexode Pro 160W For?

The Ugreen Nexode Pro 160W is an ideal choice for:

• Digital Nomads & Travelers: Replaces up to four individual chargers with a single compact unit.
• Content Creators: Powers high-draw laptops, camera battery chargers, lavalier mic receivers, and drones simultaneously.
• Power Users with Multi-Device Desktops: Cleans up cable clutter on desk power strips by running a entire mobile workstation from one outlet.

Final Verdict

The Ugreen Nexode Pro 160W GaN Charger delivers an impressive combination of raw power, compact physical engineering, and port variety. By incorporating PD 3.1 capability alongside a versatile 4-port layout, it serves as a complete power solution for modern multi-device workflows.

While power users seeking real-time telemetry screens might look toward display-equipped alternatives, those prioritizing port density, build quality, and reliable performance will find the Nexode Pro 160W to be an outstanding addition to their tech kit.

FAQ

Q1: Can the Ugreen Nexode Pro 160W charge a 16-inch MacBook Pro at full speed?

A: Yes. The primary USB-C1 port supports the USB PD 3.1 Extended Power Range (EPR) standard up to 140W (28V/5A). When paired with an EPR-rated 240W USB-C cable or an Apple MagSafe 3 cable, it can fast-charge a 16-inch MacBook Pro from 0% to 50% in approximately 28 to 30 minutes.

Q2: Does this charger support Samsung Super Fast Charging 2.0 (45W)?

A: Yes. The Nexode Pro 160W supports PPS (Programmable Power Supply) up to 5A across its main USB-C ports. This allows it to trigger Samsung’s 45W Super Fast Charging 2.0 protocol on Galaxy Ultra and Plus models without issue.

Q3: What happens to the power output when I plug in or unplug a device?

A: Like most multi-port GaN chargers, the Nexode Pro 160W momentarily pauses power output for 1 to 2 seconds when a new device is connected or disconnected. This brief pause allows the internal chip to safely calculate and redistribute wattage across all active ports.

Q4: Will charging multiple devices at once cause the charger to overheat?

A: No. Ugreen’s built-in Thermal Guard™ safety system monitors internal temperatures hundreds of times per minute. While the casing will feel warm to the touch during prolonged 160W load sessions, the thermal management system automatically regulates output to keep operating temperatures well within safety standards.

Q5: Can I use the Ugreen Nexode Pro 160W for international travel?

A: Yes. The charger supports universal dual-voltage input (100V–240V ~ 50/60Hz). Depending on the region you purchase, it either features foldable US prongs or country-specific adapters, meaning you will only need a basic plug converter when traveling abroad.
